Fire rated aluminum mat entry system
Description

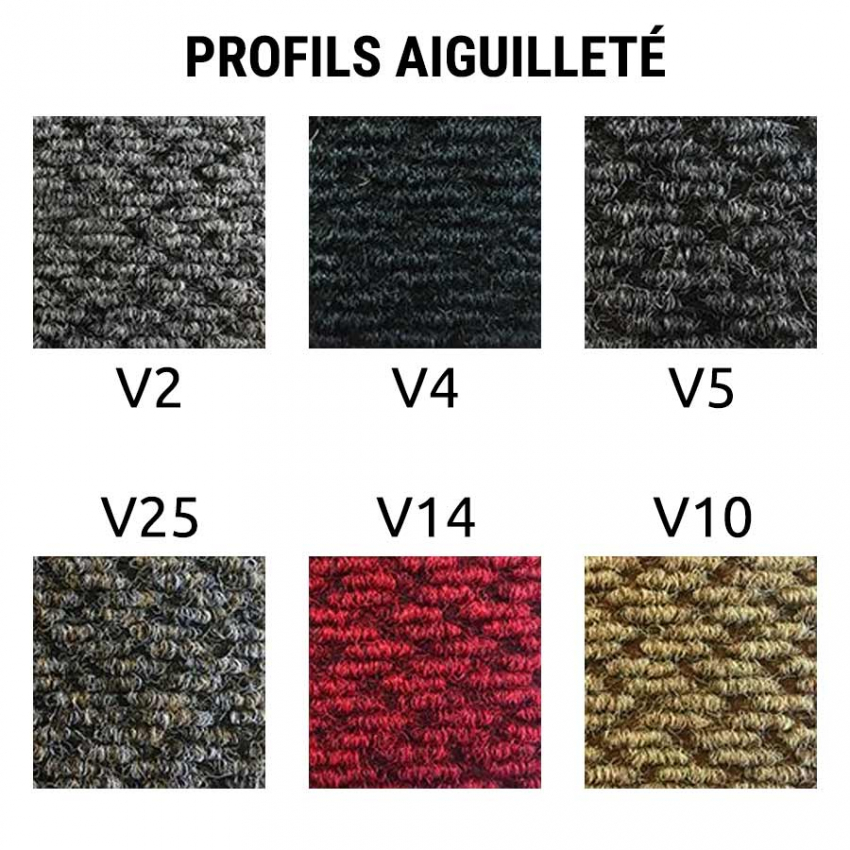

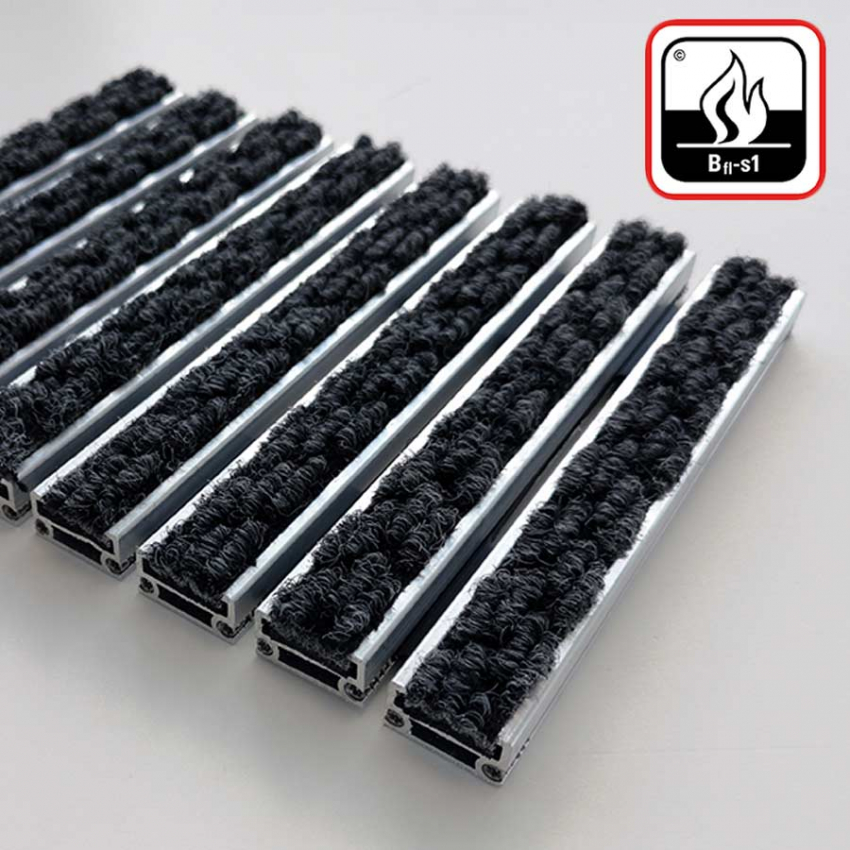

Fire-rated needle-punched profile
Robust 17 mm aluminum structure, with textured needle-punched profiles. The rough-fibre coating captures dirt from the soles and guarantees anti-slip properties. Profile spacing 4 mm or 7 mm. Extremely sturdy, making them easy to walk on for carts, heeled shoes or people with reduced mobility.
Would you like a free-standing aluminum mat with the addition of a ramp?
Contact one of our specialists for a project study.
Available in 6 colors on request.
PERSONALIZATION
BART (stainless steel bar with laser-engraved logo):
Made with laser-perforated stainless steel inverted U-shaped double sheet and customized with logo colors.
Inlay mark:
Inlaying makes it possible to create even large logos and to take advantage of all the colors and types of covering available (needle-punched fibers and velvets), creating high-impact effects and contrasts while fully maintaining the cleaning and absorption capacity of the technical mat.
Anodizing aluminum profiles:
The anodizing process enables aluminum metal profiles to be colored.
Painting and coloring RAL profiles:
Much more environmentally friendly than anodizing, painting provides gloss and matte finishes on all aluminum profiles and accessories.
Special painting:
This process enables results such as photoluminescence of aluminum profiles, a wood effect or many other unique effects.
ACCESSORIES
- Containment frame in: aluminum, steel and brass
- Anodized aluminum wire cover
- Anodized aluminum towable anti-trip ramp
- Needle-punched strips for replacement
- Special silicone for bonding needle-punched strips
- Connectors for connecting technical mats
- Stainless steel containers (optional drainage)
- Sound-absorbing foam
CLEANING
To ensure that your mats last a long time and remain functional, we recommend a thorough cleaning every week.
Vacuum the top of the mat, roll it up and remove any dirt accumulated on the bottom using a stiff bristle brush and vacuum cleaner (for the drainage structure). In thecase of stubborn dirt, wash after regular cleaning. Use a high-pressure cleaner (from a distance of at least 70 cm) to remove any dirt that has accumulated between the slats and on the covering. Allow the mat to dry completely, vertically if possible, before replacing it. To remove stains from the textile covering, you can clean the surface of the mat using warm water, a clothes brush and the appropriate degreaser.
If the covering strips are irreversibly damaged (chewing gum, oil and cigarette burns) or in the event of extreme wear, you can contact us for partial or total replacement.
RECOMMENDED APPLICATIONS :
Ideally used indoors or covered outdoors - suitable for high-traffic entrances
Boutique - GSS - Agence commerciale - Centre commercial - Commerces / magasins - Gymnase - Salle polyvalente - Club privé / fitness - Loisirs - Établissements sportifs - Scolaire - Petite enfance - Bibliothèques - Centre de documentation - Médiathèques - Universités - Écoles privés - Salles d'expositions- Musées - Salles de conférences - Restauration - Résidence de tourisme - Bureaux Privés - Administrations publics - Salles de conférences - Salles de réunion - Banques
Fast delivery (within 5 working days)*.
*Delivery times are ex works.
*Delivery times are ex works.
They are indicative and subject to product availability at ourfactories.
| plate-17-aran |
Data sheet
| Location | Interior Outdoor under cover |
| Intensity of passage | Intense |
| Properties | Customizable Fire resistant Scraping |
| Thickness | 17 mm |
| Weight | 11 kg / m² |
| Fire classification | Bfl-s1 Cfl-s1 |
| ERP category | 2 (701 to 1500 passages) 3 ( 301 to 701 passages) |
| Distance between profiles | 4 or 7 mm |
| Profile height | 12 mm |
| Profile material | EN AW-6060 aluminum alloy from recycled billets |
| MAX length of the profiles | 300 cm - 200 cm for foreign countries (extraordinary lengths can also be estimated) |
| Gateway length MAX | 300 cm (extraordinary lengths can also be evaluated) |
| Coating | Needled fibers (for coarse dirt) 100% PP UV 1500 gr / m² |
| Certifications | ISO 9001-2015 quality certificate R-12 according to DIN 51130 |
| Profile structure | Aluminium |
- Profile height: the higher the profile, the greater its dirt-holding capacity.
- Profile types: the thicker the profile cross-section, the more resistant the mat will be to rolling loads.
- Coatings: (reps, rubber or brush): The place of installation, the environment and the type of soiling determine the type of covering.
- Reps,
- Brush
- Gum
- Choice of height, etc.
Retains virtually all dirt thanks to an ingenious combination of technical entrance mats mounted on aluminum profiles and cleanliness coatings.
Ideal for the heaviest traffic, over 1,000 passages per day, and withstands caddies, carts, baby carriages and suitcase wheels.... Reduces the risk of slipping on wet floors and the cost of cleaning your entrance. Suitable for high-end building entrances that require a bright mat without loss of quality.
Aluminum mats are used when an entrance is used by more than 1,000 pedestrians or wheeled loads per day. When the reception area is divided into 3 zones (outside, inside entrance, inside building)
When choosing an aluminum mat, there are a few criteria to take into account:
(Reps ensures dirt pick-up and moisture absorption. Rubber and brushes only capture dirt).
Provides optimum protection against dirt and grime, and can be customized to suit your needs. Reduces cleaning costs and respects the environment, ensuring the longevity and neat appearance of your entrance. Reduces the risk of slipping on damp floors. Aluminum mats stand out for their efficiency, functionality, resistance, adaptability and wide range of customization options.
Easy maintenance of the pit where dirt falls, easy to replace, simply replace the profiles (no need to replace the aluminum frame). Replacement of the reps strips extends the life of the mat, while reducing investment and ensuring respect for the environment.
Aluminium mats are made from high-quality materials to ensure optimum product longevity.
We offer a wide choice of colors to match your interiors.
Several cladding styles to choose from:
Flexible, customizable combinations of different types of matting for complementary, consistent action whatever the configuration of your entrance.
